Spring Washer / Split Ring

Spring Washers / Split Ring Washers, Spring Lock & Split Ring Washers Supplier in Mumbai, India

Unifit Metal Alloys is a manufacturer, supplier, stockist and exporter of Spring Washers / Split Ring Washers in Mumbai, India, supplying fastening components for industrial machinery, engineering equipment, fabrication work and mechanical assemblies. These washers are designed to provide spring tension within bolted joints and help maintain fastening pressure during service. We offer different sizes, thicknesses, materials and finishes to suit a variety of assembly requirements. Standard and customized specifications can also be supplied.

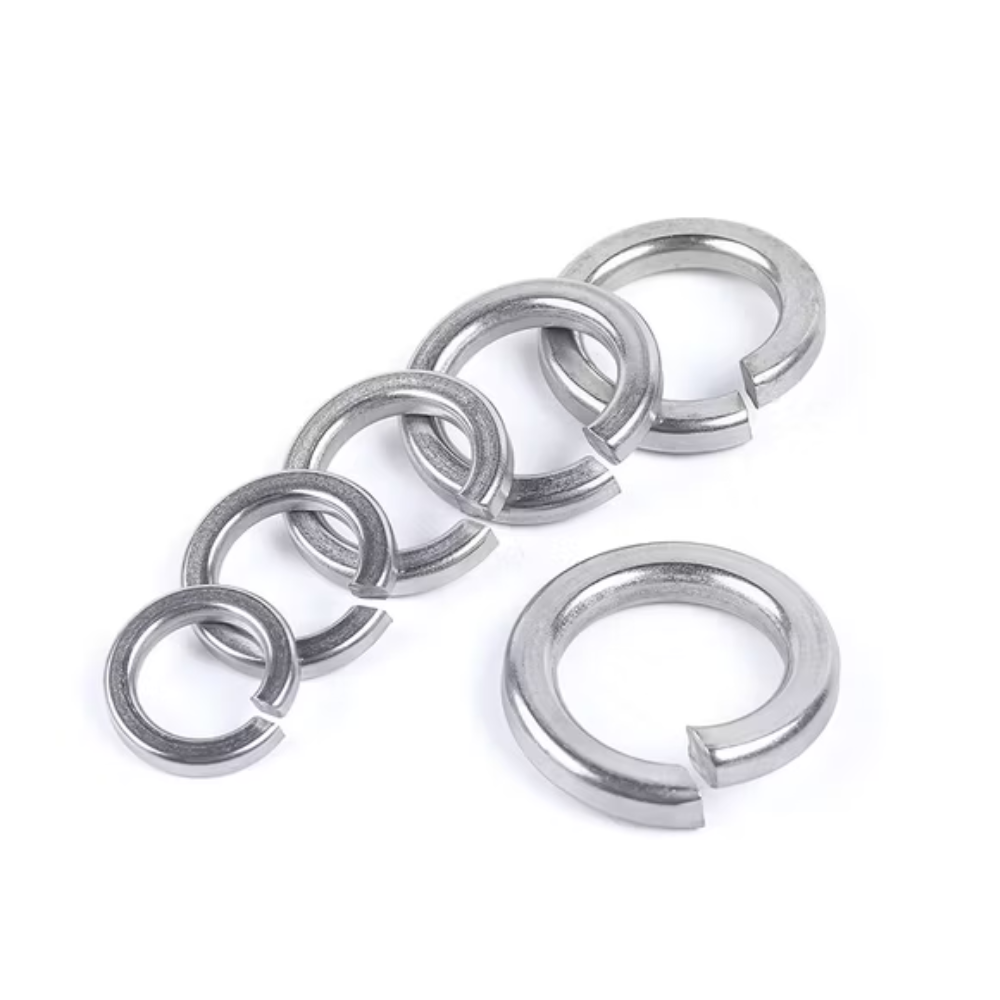

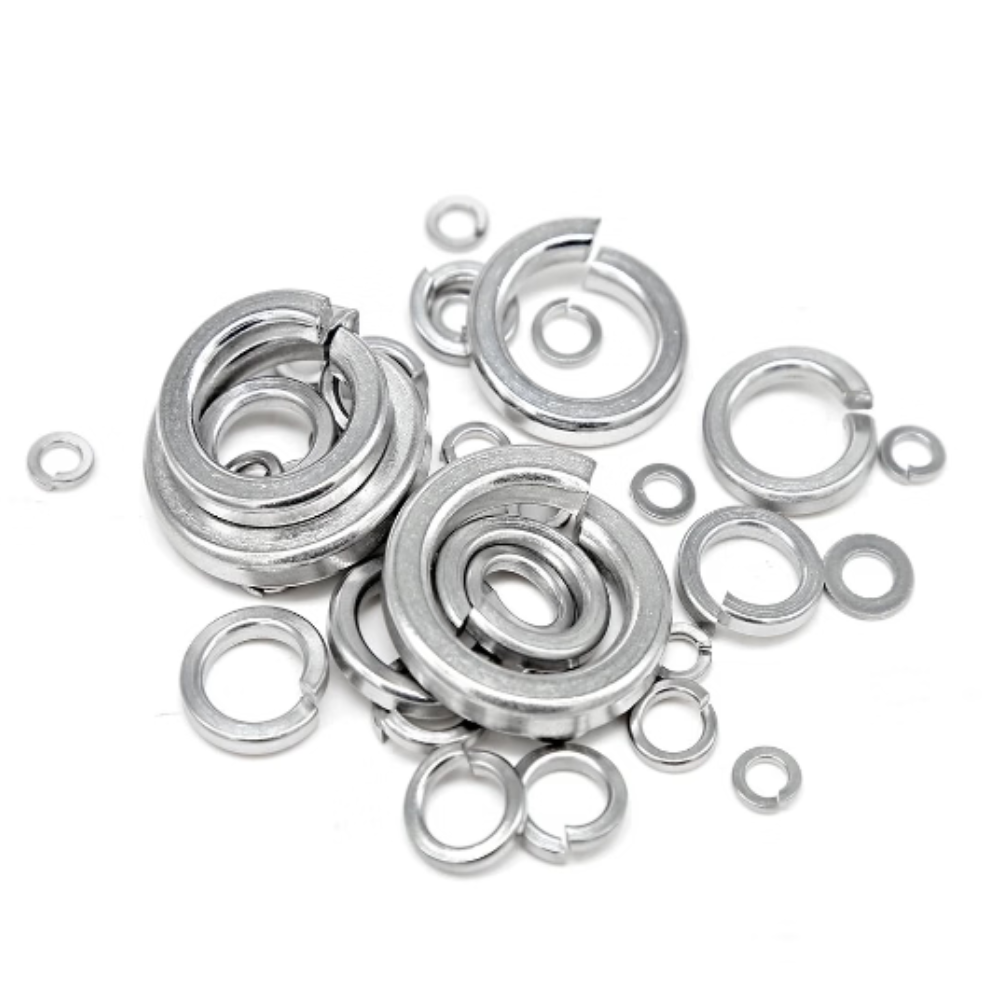

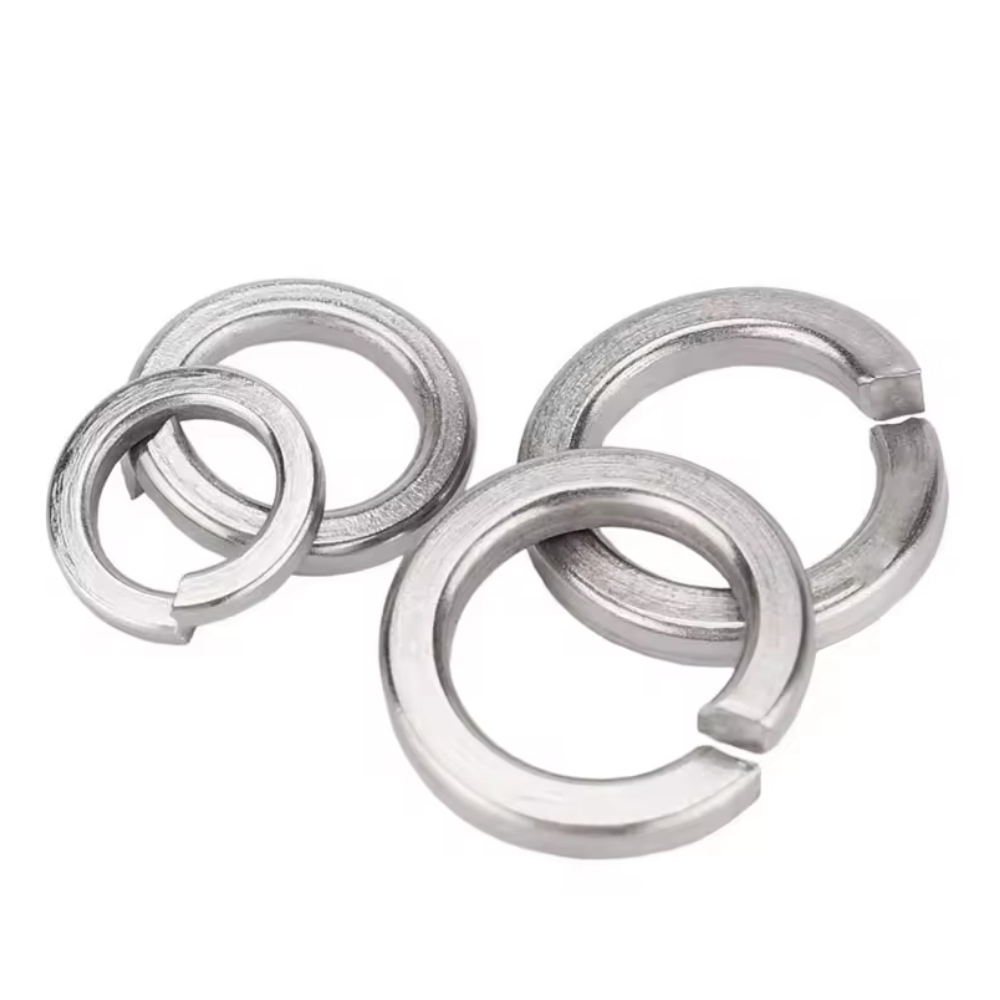

Spring Washers / Split Ring Washers are installed beneath nuts or bolt heads to improve the security of threaded connections. Their split and spring-like construction creates a resilient load between the mating surfaces, helping compensate for minor loosening caused by vibration, movement or repeated operation. They are available in different dimensions and material options to match the requirements of specific fastening applications.

Spring Washer / Split Ring Washer, Spring Lock & Split Ring Washer Manufacturer & Supplier in India

These washers are commonly used in automotive components, industrial machinery, electrical equipment, fabrication assemblies, construction equipment, engineering plants and general maintenance applications. Their compact design makes them convenient for use where additional spring tension is required within a threaded joint. Different washer dimensions can be supplied according to bolt size, load requirements and assembly conditions.

At Unifit Metal Alloys, we supply Spring Washers / Split Ring Washers in various sizes, materials, thicknesses and surface finishes for standard and specialized applications. We cater to individual requirements, maintenance needs, bulk orders and industrial projects.

Get the Best Quote for Spring Washers / Split Ring Washers. We Stock Spring Washers / Split Ring Washers in Various Diameters, Thicknesses, Sizes, Materials and Surface Finishes. Contact Us Today for a Competitive Quote.

Specifications of Spring Washer / Split Ring

Specification Details
Size Range M3 to M72 (Custom sizes available)
Washer Type Spring Washer
Materials Mild Steel, Stainless Steel, Carbon Steel
Thickness Range 1 mm to 6 mm
Surface Finish Zinc Plated, Black Oxide, Phosphated, Galvanized
Standards DIN, ISO, IS, ASTM, BS

Spring Washer / Split Ring Technical Chart

Nominal Size Inner Diameter (mm) Outer Diameter (mm) Thickness (mm)
M6 6.1 11.8 1.6
M8 8.1 15.8 2.0
M10 10.2 19.6 2.2
M12 12.2 23.6 2.5
M16 16.2 29.6 3.0
M20 20.2 36.9 3.5
M24 24.2 44.0 4.0

You need our support, to
have any projects?

Mechanical Properties of Spring Washer / Split Ring

Hardness- Rockwell Proof load ksi Heating temperature Nominal Dia in ASTM A194 Spring Washers Grade
159-352 150 0 °F 1/4 – 4 ASTM A194 Grade 2
C24-C38 175 850 °F – 450 °C 1/4 – 4 ASTM A194 Grade 2H
159-237 150 1150 °F – 620 °C 1/4 – 4 ASTM A194 Grade 2HM
C24-C38 175 1100 °F – 600 °C 1/4 – 4 ASTM A194 Grade 4
C24-C38 175 1100 °F – 600 °C 1/4 – 4 7
159-237 150 1150 °F – 620 °C 1/4 – 4 ASTM A194 Grade 7M
126-300 80 – 1/4 – 4 ASTM A194 Grade 8
126-300 80 – 1/4 – 4 ASTM A194 Grade 8M

Ready Stock of Spring Washer / Split Ring

Spring Washers
Split Ring Washers
Spring Lock Washers
Helical Spring Washers
Heavy Duty Spring Washers
Internal Tooth Lock Washers
External Tooth Lock Washers
Conical Spring Washers
Wave Spring Washers
Stainless Steel Spring Washers

Spring Washer / Split Ring Application Industries

Refineries
90%
Oil and Gas Industry
96%
Power Generation
80%
Pharmaceutical Equipment
85%
Pulp & Paper Industry
88%
