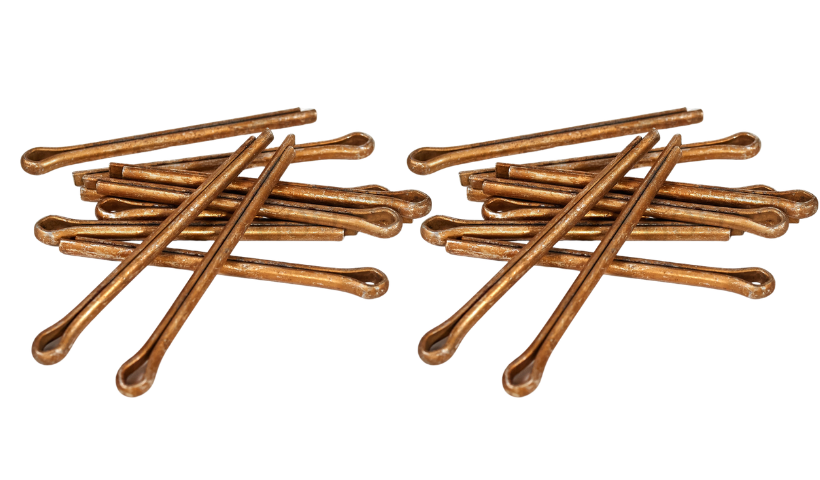

Copper Cotter Pins, Copper Standard & Copper Heavy Duty Cotter Pins Supplier in Mumbai, India
Unifit Metal Alloys is a manufacturer, supplier, stockist and exporter of Copper Cotter Pins in Mumbai, India, supplying non-ferrous retaining fasteners for engineering equipment, machinery, fabrication work and industrial assemblies. These pins are manufactured from copper materials selected for their electrical conductivity, corrosion resistance and reliable performance in suitable fastening applications. We offer different diameters and lengths to meet varied assembly requirements. Standard and customized dimensions can also be supplied.
Copper Cotter Pins are used to retain bolts, clevis pins, nuts and other mechanical components in their intended position. The split-leg design allows the pin ends to be opened or bent after installation, helping hold the connection securely and reducing the possibility of unwanted movement. Copper construction provides good resistance to atmospheric and moisture-related corrosion while offering the benefits of a non-ferrous material. These characteristics make copper cotter pins suitable for specialized engineering and maintenance applications.
Copper Cotter Pin, Copper Standard & Copper Heavy Duty Cotter Pin Manufacturer & Supplier in India
Copper Cotter Pins can be used in electrical equipment, marine assemblies, plumbing systems, instrumentation, fabrication, engineering machinery and general industrial applications where copper-based components are preferred. Their material properties can be useful in environments requiring conductivity and resistance to rust. Different pin sizes and lengths can be supplied according to the dimensions of the mating components. Special sizes and specifications can also be produced as required.
At Unifit Metal Alloys, we supply Copper Cotter Pins in a range of sizes, lengths and material specifications for standard and project-specific requirements. We cater to maintenance needs, individual orders and bulk industrial quantities.
Get the Best Quote for Copper Cotter Pins. We Stock Copper Cotter Pins in Various Diameters, Lengths, Sizes, Grades and Surface Finishes. Contact Us Today for a Competitive Quote.
Specifications of Copper Cotter Pin
| Material | Copper |
|---|---|
| Grades | Copper 101, Copper 110 |
| UNS | C10100, C11000 |
| Standard | DIN 94, ISO 1234, BS 1574 |
| Size Range | 1/32 Inches to 3/8 Inches |
| Length | 1/4 Inches to 6 Inches |
| Shape | U Shape, Split Type |
| Head Type | Round, Spherical, Dome, Flat, Ring |
| Finish | Plain, Polished |
| Manufacturing Process | Cold Drawn, Cold Rolled, Machined |
| Temperature Range | Moderate to High Temperature Service |
| Corrosion Resistance | Excellent Resistance to Atmospheric and Marine Corrosion |
| Electrical Conductivity | Excellent |
| Application | Electrical, Marine, Plumbing, Automotive, Machinery, General Engineering |
| Packaging | Boxes, Bulk, Individual Packs |
Copper Cotter Pin Size Chart
| Nominal Size | Length | Width | Head Diameter |
|---|---|---|---|
| 1/32″ | 1/4″ – 3/8″ | 0.8 – 1.0 mm | 1.6 – 2.0 mm |
| 1/16″ | 1/2″ – 3/4″ | 1.2 – 1.6 mm | 2.4 – 3.2 mm |
| 3/32″ | 3/4″ – 1″ | 1.6 – 2.0 mm | 3.2 – 4.0 mm |
| 1/8″ | 1″ – 1-1/2″ | 2.0 – 2.5 mm | 4.0 – 5.0 mm |
| 5/32″ | 1-1/2″ – 2″ | 2.4 – 3.2 mm | 5.0 – 6.4 mm |
| 3/16″ | 2″ – 3″ | 3.1 – 4.0 mm | 6.3 – 8.0 mm |
| 1/4″ | 2″ – 4″ | 4.0 – 5.0 mm | 8.0 – 10.0 mm |
| 5/16″ | 3″ – 5″ | 5.0 – 6.3 mm | 10.0 – 12.6 mm |
| 3/8″ | 4″ – 6″ | 6.3 – 8.0 mm | 12.6 – 16.0 mm |
You need our support, to
have any projects?
Copper Cotter Pin Equivalent Grades
| Grade | UNS | Werkstoff No. | EN | Equivalent Grade |
|---|---|---|---|---|
| Copper 101 | C10100 | 2.0040 | Cu-OF | Oxygen-Free Copper |
| Copper 110 | C11000 | 2.0060 | Cu-ETP | Electrolytic Tough Pitch Copper |
Ready Stock of Copper Cotter Pin
Copper Cotter Pin Application Industries
