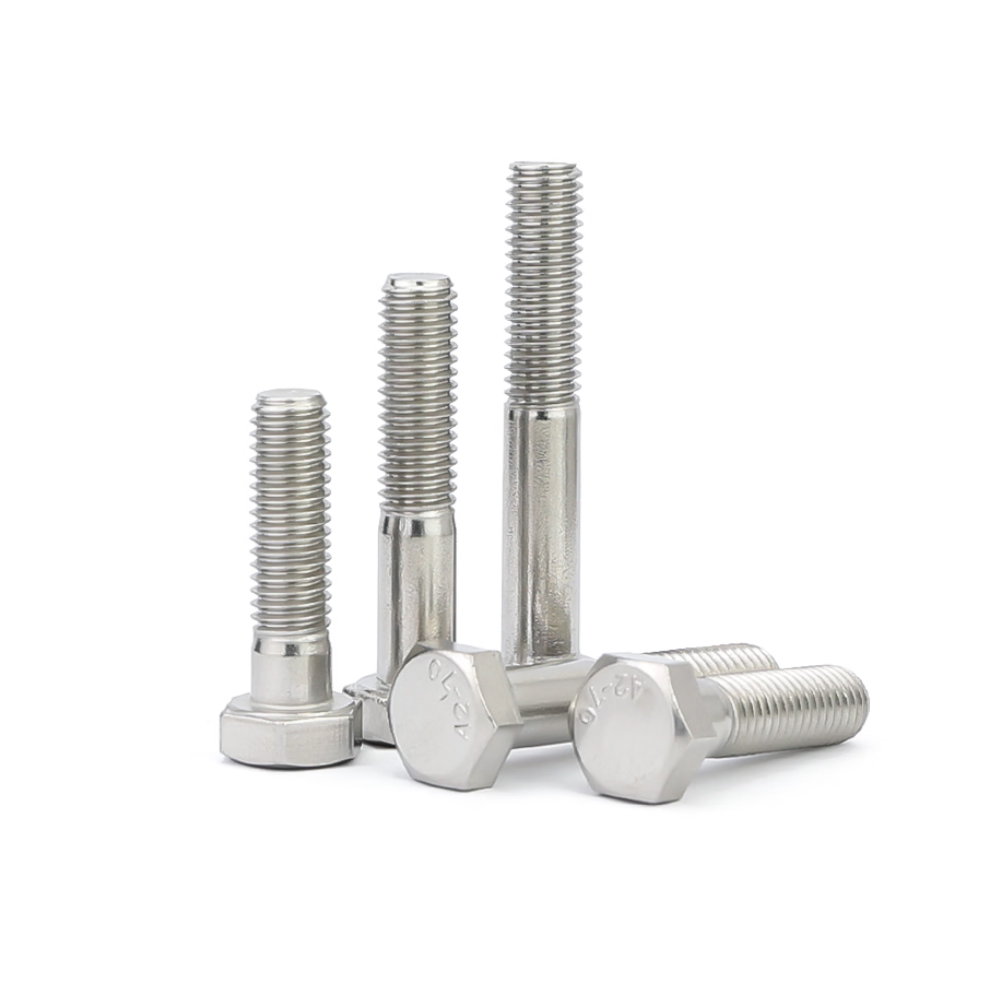

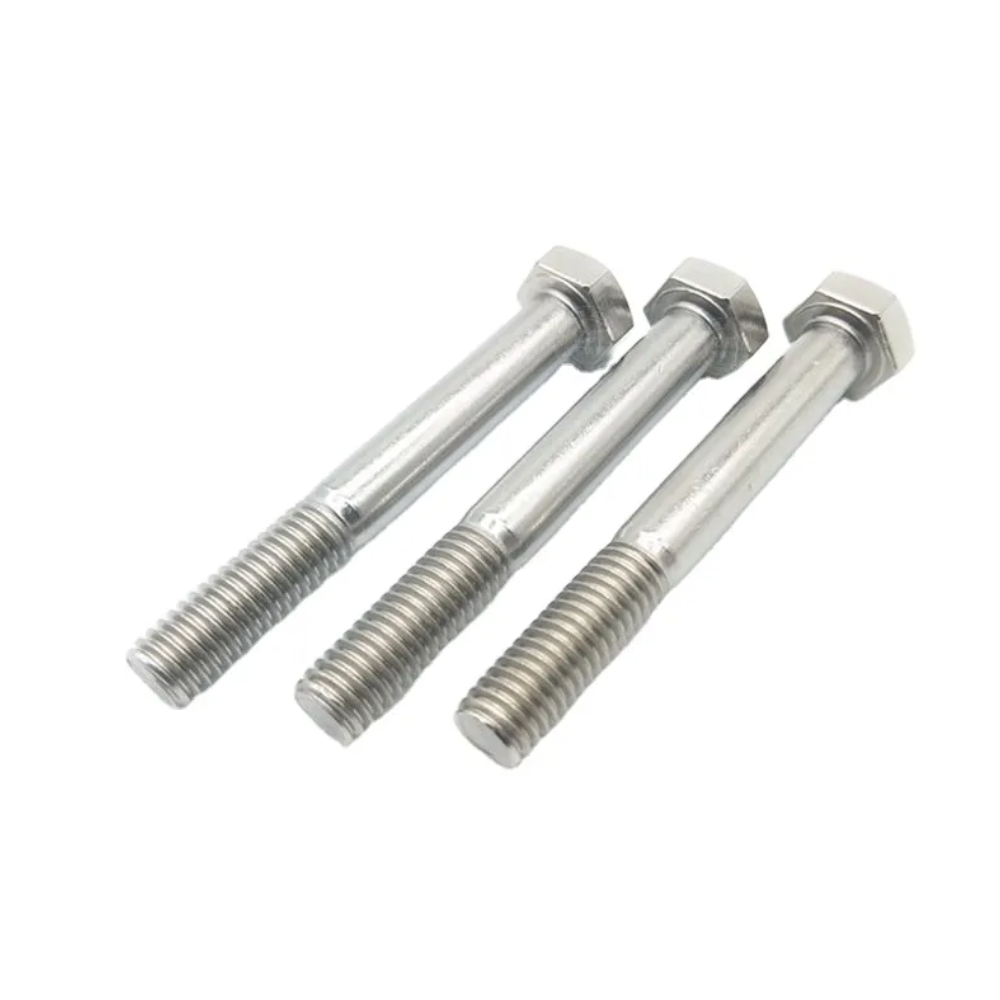

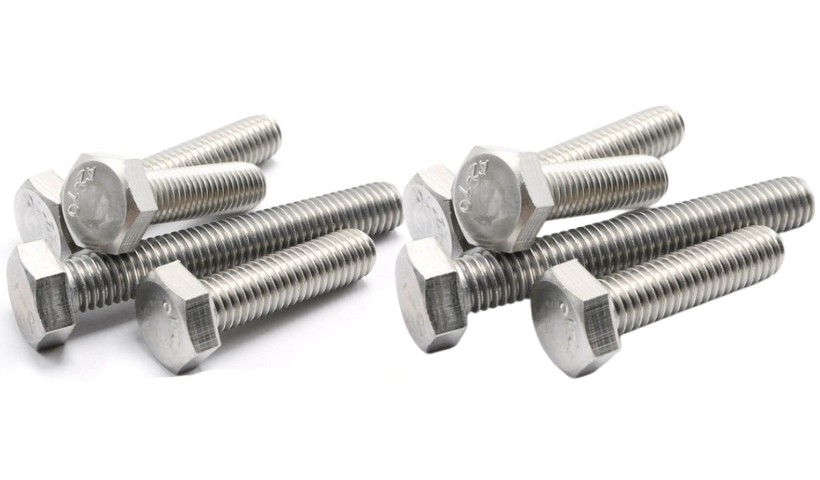

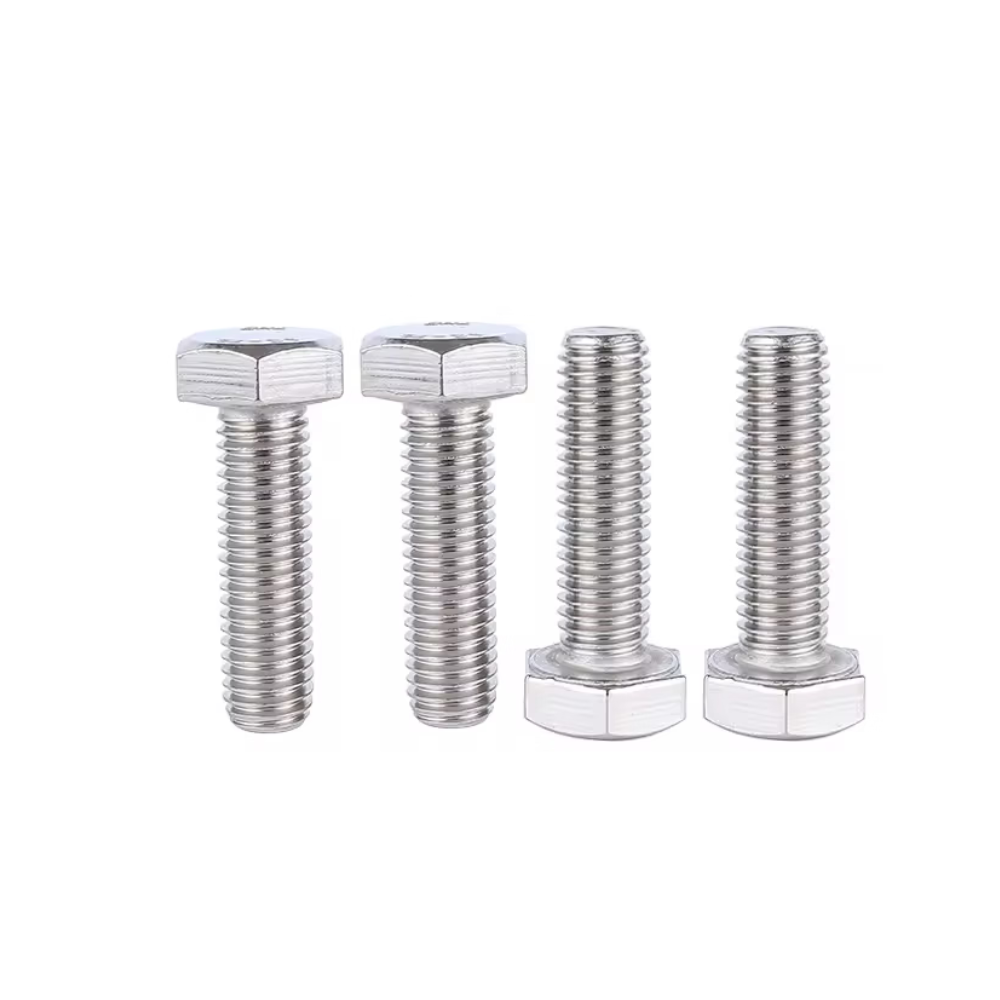

ASTM A193 GR B8M CL 1 Bolts, ASTM A193 GR B8M CL 1 Stud Bolts, Heavy Hex Bolts & B8M CL 1 Bolting Supplier in Mumbai, India
Unifit Metal Alloys is a manufacturer, supplier, stockist and exporter of ASTM A193 GR B8M CL 1 Bolts in Mumbai, India, supplying stainless steel bolting for pressure vessels, piping networks, valves, flanged joints and industrial equipment. These fasteners are produced from corrosion-resistant austenitic stainless steel and are intended for applications where dependable fastening is required in wet, chemical or chloride-containing environments. We supply various diameters, lengths, thread configurations and bolt styles for standard and customized requirements.
ASTM A193 GR B8M CL 1 Bolts are manufactured and processed to provide reliable mechanical performance together with resistance to corrosive service conditions. The B8M grade is based on molybdenum-bearing stainless steel, making it particularly useful where improved resistance to pitting and localized corrosion is required. These bolts are commonly installed with compatible nuts in flange and pressure-containing connections where secure clamping must be maintained throughout service.
ASTM A193 GR B8M CL 1 Bolts, ASTM A193 GR B8M CL 1 Stud Bolts, Heavy Hex Bolts & B8M CL 1 Bolting Manufacturer and Supplier in Mumbai, India
These fasteners are widely used in chemical processing plants, marine equipment, oil and gas facilities, refineries, petrochemical units, water-treatment systems, power plants and industrial piping installations. Their corrosion-resistant construction makes them suitable for applications involving moisture, seawater, chlorides and aggressive process media.
At Unifit Metal Alloys, we supply ASTM A193 GR B8M CL 1 Bolts in different sizes, lengths, thread forms and surface finishes according to application requirements. We cater to maintenance orders, fabrication requirements, bulk supplies and industrial projects.
Get the Best Quote for ASTM A193 GR B8M CL 1 Bolts. We Stock ASTM A193 GR B8M CL 1 Bolts in Various Diameters, Lengths, Thread Sizes, Specifications and Surface Finishes. Contact Us Today for a Competitive Quote.
ASTM A193 GR B8M CL 1 Bolts Specifications
| Material | Stainless Steel |
|---|---|
| Grade | ASTM A193 Grade B8M Class 1 |
| Product Type | Bolts, Stud Bolts, Screws and Threaded Rods |
| Standard | ASTM A193 / ASME SA193 |
| Stainless Steel Type | Austenitic Stainless Steel |
| Equivalent Grade | UNS S31600 / SS 316 |
| Size Range | M6 to M100 and 1/4″ to 4″ |
| Thread Standard | UNC, UNF, UNEF, Metric and Custom Threads |
| Manufacturing Process | Cold Forged, Hot Forged, Machined and Thread Rolled |
| Heat Treatment | Solution Heat Treated |
| Finish | Plain, Passivated, Polished and Custom Finishes |
| Corrosion Resistance | Excellent Resistance to General Corrosion, Pitting and Crevice Corrosion |
| Temperature Resistance | Suitable for Elevated Temperature Applications |
| Application | Oil & Gas, Petrochemical, Chemical Processing, Marine, Power Generation, Refinery, Pressure Vessel and Industrial Equipment |
| Packaging | Cartons, Wooden Cases, Pallets, Bulk and Custom Packaging |
Chemical Composition for ASTM A193 GR B8M CL 1 Bolts
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Element | Austenitic Stainless Steel | |||||
| AISI 316 / 316L | ||||||
| CompositionA, % | ||||||
| Carbon | 0.08 max | |||||
| Manganese | 2.00 | |||||
| Phosphorus | 0.045 max | |||||
| Sulfur | 0.030 max | |||||
| Silicon | 1.00 max | |||||
| Chromium | 16.00 – 18.00 | |||||
| Nickel | 10.00 – 14.00 | |||||
| Molybdenum | 2.00 – 3.00 | |||||
You need our support, to
have any projects?
Mechanical Properties of ASTM A193 GR B8M CL 1 Bolts
| Tensile Class | Diameter, Inch min, ksi | Tensile Strength, min, ksi | Yield Strength, min, 0.2% offset, ksi | Elongation in 4D, min, % | Reduction of Area, min, % | Hardness, max | |
|---|---|---|---|---|---|---|---|
| Class 1 | All Sizes | 75 | 30 | 30 | 50 | 223 HBW or 96 HRB | |
Ready Stock of ASTM A193 GR B8M CL 1 Bolts
ASTM A193 GR B8M CL 1 Bolts Application Industries
