Alloy 20 Pipe Fittings

  • Home
  • Alloy Pipe Fittings

Incoloy® Alloy 20 LR Elbow, Grade 20 Alloy Buttweld Fittings, Ready Stock Of Carpenter 20 Pipe Fittings, Alloy 20 Elbow, Manufacturer of ASTM B366 Grade 20 Pipe Elbow Supplier in Mumbai.

Unifit Metal Alloys is aneminenttrader and manufacturer of Alloy 20 Butt Weld Fittings, which are available at the most competitive prices for our valued customers. UNS N08020 Elbow Pipe Fittings is also utilised in chemical, petrochemical, food processing, pharmaceutical, pulp and paper manufacturing, power generating, and other industries. It has great strength and corrosion resistance, making it ideal for use with chip breakers.It is heated to 1149 - 1260 degrees Celsius (2100 Degree F – 2300 Degree F). It shouldn’t be frenzied below 927 Degree C (1700 Degree F), where post-work hardening can be carried out to maintain erosion resistance. It offers good corrosion resistance, greater creep, stress-to-rupture, and tensile strength at high temperatures, and can keep surfaces clean.

DIN 2.4660 Stub End, Grade 20 Alloy Pipe Fittings, India., Alloy 20 Short Radius Elbow, Alloy 20cb3 Pipe Cap, Carpenter 20Cb-3® Reducer, Incoloy® Alloy 20 90 Degree Elbow, UNS N08020 Buttweld Fittings, ANSI B16.9 Gr 20 Alloy Welded Fittings Manufacturer In Mumbai.

A post-work annealing is advised for maximum corrosion resistance since WNR 2.4660 Tee Pipe Fittings combats the tendency to pit when in contact with phosphorous acids, chlorides, bromides, and iodides. It offers great resistance in applications where contamination must be maintained to a minimal because of its low carbon content, which permits it to be extremely resistant to inter-granular corrosion. This alloy's acid content has a significant impact on the pace of attack in such settings and should be carefully assessed during service testing. It has higher welding strength; its products are stronger since it does not react to or harden from heat treatments.

Alloy 20Cb3 Reducer Pipe Fittings are resistant to concentrations of this acid of up to certain percentage at temperatures as high as 120° F (49° C). Any conventional hot working processes can be used on it. The oxyacetylene welding process is not recommended for this steel, which performs well in sulphuric acid and sodium hydroxide testing. One known exception is that molybdenum-containing compounds are less resistant to strongly oxidising acids such as nitric acid. Heat this steel to 2100 degrees Fahrenheit - 2300 degrees Fahrenheit (1149 degrees Celsius - 1260 degrees Celsius), and avoid dealing with it below 1700 degrees Fahrenheit (927 Degree C). Because we have this steel in a variety of lengths, sizes, and requirements, it is in great demand.

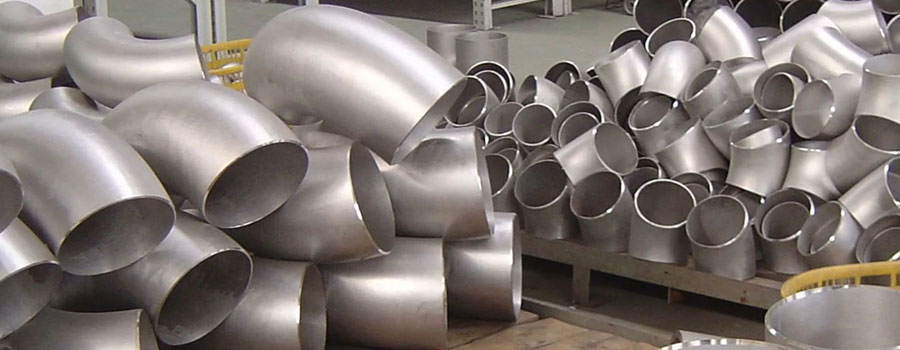

Alloy 20 Pipe Fittings

Get a best quote for SB366 Gr 20 Alloy Seamless Fittings, We Keep Bulk Stock of Incoloy® Alloy 20 Buttweld Pipe Fittings at our stockyard, contact us to request a quote.

Alloy 20 Pipe Fittings Specifications

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Alloy 20 Pipe Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS AFNOR EN
Alloy 20 2.4660 N08020 Z2NCUD31-20AZ NiCr20CuMo

Alloy 20 Butt weld Fittings Chemical Composition

Grade C Mn Si S Cu Ni Cr Fe Mo P
Alloy 20 0.07 max 2.00 max 1.00 max 0.035 max 3 – 4 32 – 38 19 – 21 29.85 min 2.00 – 3.00 0.045 max

Alloy 20 Pipe Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.1 g/cm3 1443 °C (2430 °F) Psi -80,000, MPa -551 Psi - 35,000, MPa - 241 30 %

Various Types Of Alloy 20 Pipe Fittings

Alloy 20 Elbow

Alloy 20 Elbow

ANSI B16.9 Alloy 20 Buttweld Elbow Incoloy® Alloy 20 Pipe Elbow UNS N08020 90 Degree Elbow DIN 2.4660 45 Degree Pipe Elbow
Alloy 20 Reducer

Alloy 20 Reducer

UNS N08020 Reducers Grade 20 Alloy Butt weld Concentric Reducer ANSI B16.9 Alloy 20 Buttweld Reducers DIN 2.4660 Butt weld Eccentric Reducer
Alloy 20 Tee

Alloy 20 Tees

Carpenter 20 Reducing Tees ANSI B16.9 Gr. 20 Buttweld Tees DIN 2.4660 Butt weld Unequal Tee UNS N08020 Buttweld Equal Tee
Alloy 20 Cross

Alloy 20 Cross

DIN 2.4660 Buttweld Pipe Cross UNS N08020 Reducing Cross Alloy 20cb3 Equal Cross ANSI B16.9 Incoloy® Alloy 20 Buttweld Cross
Alloy 20 Stub End

Alloy 20 Stub End

Incoloy® Alloy 20 Long Stub End UNS N08020 Short Stub End ANSI B16.9 Alloy 20 Buttweld Stub End DIN 2.4660 Lap Joint Stub End
Alloy 20 Pipe Cap

Alloy 20 Pipe Cap

DIN 2.4660 End Cap ANSI B16.9 Grade 20 Alloy Buttweld Pipe Cap Carpenter 20Cb-3® Buttweld Cap UNS N08020 Buttweld Pipe Cap
Alloy 20 Bend

Alloy 20 Bend

UNS N08020 Piggable Bend Alloy 20cb3 Long Radius Bend ANSI B16.9 Incoloy® Alloy 20 Buttweld Bend DIN 2.4660 Hot Induction Bend
Alloy 20 Nipple

Alloy 20 Nipple

Alloy 20CB-3® Pipe Nipple ANSI B16.9 Alloy 20 Buttweld Nipple UNS N08020 Butt weld Swage Nipple DIN 2.4660 Barrel Nipple

Alloy 20 Pipe Fittings Thickness Chart

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31
