Manufacturer of ASTM B473 Alloy 20 Fasteners, Alloy 20 Bolts, Ready Stock Of Carpenter 20 Anchor Fasteners, Incoloy® Alloy 20 Socket Set Screw, Alloy 20 Threaded Rod Supplier in Mumbai.

Unifit Metal Alloys is Supplier of Alloy 20 Fasteners, whichis utilised in furnaces, heat exchangers, oil burners, welding filler wire and electrodes, kilns, cryogenics, food processing equipment, and other similar applications. Although keeping good strength at high temperatures, this UNS N08020 Nuts, like other austenitic grades, will also sustain strength and toughness at sub-zero temperatures. Because of its great heat resistance, this steel is commonly used in components for furnaces, heat treatment baskets, jigs, and case hardening boxes, steam locomotive parts, burners, combustion chambers, heat exchangers, and food processing equipment. It should be swiftly air-cooled or water quenched immediately after forging, since annealing after forging results in the best corrosion resistance.

DIN 2.4660 Bolts, Alloy 20 Screws, Incoloy® Alloy 20 Machine Screw, Carpenter 20 Stud Bolts, Alloy 20 Fasteners, ALLOY 20CB-3® Washer, Carpenter 20 Fasteners, UNS N08020 Nuts Manufacturer In Mumbai, India.

Though oxyacetylene welding is not suggested, most steels like WNR 2.4660 Bolts may be easily fused using fusion or resistance processes. It is utilised in burners, hob tips, brick supports, brick shelves, tube hangers, and other applications. Our honest efforts for this steel have helped us to maximise the happiness of our complete client base. Because of the minimal carbon quantity in this alloy, it is less prone to embrittlement and sensitization during usage. Heat this product steadily and consistently across the section to 1100° C - 1230° C, re-heating as needed and avoiding working below 1000° C. Shielded fusion and resistance techniques can be used to weld it, however oxyacetylene welding should be avoided to avoid carbon pick up in the welds.

To relieve internal tension, Alloy 20Cb3 Washers requires full after cold work. It is also utilised in burners, retorts, muffles, combustion chambers, annealing covers, cryogenic structures, food processing equipment, and other similar applications. To prevent strong deformation, shrinking, or flaking tack welds, an accumulation of weld seams should be avoided where they must be affixed by means of having relatively smaller distances from each other (suggestively smaller than those of non-alloyed steels). We guarantee a defect-free range for our customers in addition to manufacturing the entire range of this product we offer under the strict supervision of experts and professionals.

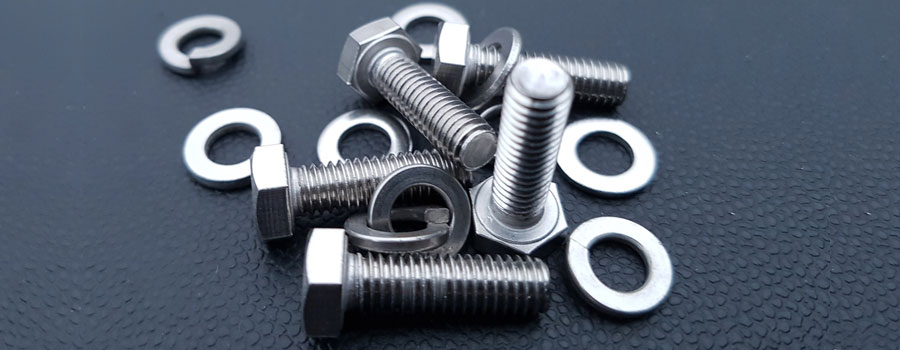

Alloy 20 Fasteners

Get a best quote for Carpenter 20 Fasteners, We Keep Bulk Stock of Alloy 20 Bolts at our stockyard, contact us to request a quote.

Alloy 20 Fasteners Specifications

SpecificationASTM B473, ASME SB 473
StandardDIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards
SizeM2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160
Length3 mm to 200 mm
ThreadsMETRIC, BSW, BSF, UNC, UNF or as required
Standard

ANSI – American National Standards Institute

  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • ASME B18.2.2
  • ASME B18.5

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards

In Form ofHex, Square, Round, Threading as per Gauge Etc.
Head drivePhillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate:Manufacturer Test Certificate as per EN 10204 / 3.1
Surface finishingZinc (yellow, white, blue, black), black oxide,
Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production processM2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
Surface Coating
  • Teflon Coated Fasteners
  • Phosphate Coated Fasteners
  • Zinc Coated Fasteners
  • Ptfe Coated
  • Xylon Coated Fasteners
  • Cadmium Coated Fasteners
  • Hot Dipped Galvanizing Coated Fasteners

All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet

PackingIN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request

ANSI And/Or ASME Standards Fasteners Inch Series

ASME B18.1.1 Small Solid Rivets ASME B18.8.1 Clevis Pins and Cotter Pins
ASME B18.1.2 Large Rivets ASME B18.8.2 Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1 Square and Hex Bolts and Screws ASME B18.9 Plow Bolts
ASME B18.2.2 Square and Hex Nuts ASME B18.10 Track Bolts and Nuts
ASME B18.2.6 Fasteners for use in Structural Applications ASME B18.11 Miniature Screws
ASME B18.3 Socket Cap, Shoulder and Set Screws ASME B18.13 Screws and Washer Assemblies (Sems)
ASME B18.5 Round Head Bolts ASME B18.15 Forged Eyebolts
ASME B18.6.2 Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws ASME B18.17 Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3 Machine Screws and Machine Screws Nuts ASME B18.21.1 Lock Washers
ASME B18.6.4 Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws ASME B18.22.1 Plain Washers
ASME B18.7 General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps ASME B18.23.1 Beveled Washers

Alloy 20 Fasteners Equivalent Grades

STANDARD  WERKSTOFF NR. UNS AFNOR EN
Alloy 20 2.4660 N08020 Z2NCUD31-20AZ NiCr20CuMo

Alloy 20 Fasteners Chemical Composition

Grade  Ni Fe C Mn Si Cu Cr Mo S P Nb
Alloy 20 32 – 38 Bal 0.02 max 1 – 2 0.7 max 3 – 4 19 – 21 2 – 3 0.005 max 0.02 max> 0.1 – 0.3

Alloy 20 Fasteners Mechanical Properties

Element  Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Alloy 20 8.1 g/cm3 1443 °C (2430 °F) Psi -80,000, MPa -551 Psi – 35,000, MPa – 241 30 %

Alloy 20 Fasteners Standard

Hexagon Bolt / Set Screws Stud Bolt Hexagon Nuts Socket Cap screws
DIN 931 BS4882 DIN 934 DIN 912
DIN 933 DIN 976 BS 1768 DIN 6912
BS 1768 BS 1769 DIN 7984
UNI 5731 BS 1083 ANSI B18.3
UNI 5739 BS 3692 ISO 4762
ISO 4014 ISO 4032 UNI 5931
ISO 4017 ISO 4033 BS 2470
BS 1769 ANSI B18.2.2 BS 4168
BS 3692
ANSI B18.2.1
Socket & Slotted Set Screws Socket & Slotted Countersunk Screws Studs Washers
DIN 913 DIN 963 DIN 938 DIN 125
DIN 914 DIN 7991 DIN 939 DIN 9021
DIN 915 BS 4168 DIN 2510 BS 4320
DIN 916 BS 1981 BS 4439 BS 3410
DIN 551 BS 483 BS 2693
DIN 553 BS 2470 Spring Washers
DIN 438 DIN 127
BS 4168 BS 4464
BS 1802

Various Types Of Alloy 20 Fasteners

Alloy 20 Bolts

Alloy 20 Bolts

Alloy 20 Square Bolts Carpenter 20 Flange Bolts UNS N08020 Eye Bolts Alloy 20 Carriage Bolts DIN 2.4660 U Bolts
Alloy 20 Screw

Alloy 20 Screws

UNS N08020 Machine Screw Alloy 20 Screw Incoloy® Alloy 20 Self Tapping Screw DIN 2.4660 Allen Cap Screws Alloy 20 Socket Head Cap Screw
Alloy 20 Nuts

Alloy 20 Nuts

Carpenter 20 Hex Nuts UNS N08020 Heavy Hex Nuts DIN 2.4660 Square Nuts Alloy 20 Coupling Nuts Incoloy® Alloy 20 Wing Nuts
Alloy 20 Stud Bolts

Alloy 20 Stud Bolts

DIN 2.4660 Tap End Stud Bolt UNS N08020 Tie Rods Carpenter 20 Half Threaded Stud Bolt Alloy 20 Stud Bolt Incoloy® Alloy 20 Double Ended Stud Bolts
Alloy 20 Washers

Alloy 20 Washers

Alloy 20 Square Washer Incoloy® Alloy 20 Plain Washer DIN 2.4660 Ogee Washer UNS N08020 Spring Washer Alloy 20 Split Washer
Alloy 20 Anchor Bolts

Alloy 20 Anchor Bolts

UNS N08020 J Anchor Bolts Incoloy® Alloy 20 Anchor Bolts DIN 2.4660 Sleeve Anchor Bolts Carpenter 20 Self Tapping Anchor Alloy 20 Concrete Anchor
Alloy 20 Threaded Rod

Alloy 20 Threaded Rod

Carpenter 20 Partially Threaded Rods DIN 2.4660 Half Threaded Rods UNS N08020 Heavy Threaded Rods Alloy 20 Trapezoidal Threaded Rod Alloy 20 Full Threaded Rods
Alloy 20 Stud

Alloy 20 Stud

Carpenter 20 Double Ended Stud UNS N08020 Stud Carpenter 20 Flush Head Studs DIN 2.4660 Full Thread Stud Alloy 20 Studs

Weight Chart Of Alloy 20 Fasteners

AS PER IS 1363/67 MM THREADS
FOR 100 NOS APPROXIMATE WEIGHT IN KGS
LENGTH Fasteners DIAMETER
M 6M 5M 8M 12M 10M 14M 18M 22M 16M 20
16 mm0.7430.4481.590 3.211
20 mm0.8120.5981.7114.8923.411
25 mm0.8970.6601.8715.2523.6608.170
30 mm1.0100.7372.0705.5743.9129.690  10.70718.657
35 mm1.1200.8042.2715.9744.22310.00016.026 11.41619.608
40 mm1.2300.8812.4706.4104.53310.28816.667 12.10720.747
45 mm1.3400.9582.6716.8594.84010.50417.241 12.82121.739
50 mm1.4501.0302.8707.2995.15511.26117.85728.40913.62422.727
55 mm1.560 3.0717.7405.46411.62818.86830.12014.40923.810
60 mm1.670 3.2708.1835.77412.25520.00032.05115.24425.126
65 mm1.781 3.4728.6216.08312.62621.00834.01416.02626.455
70 mm1.890 3.6719.0586.39412.98722.12435.46116.83527.778
75 mm2.000 3.8739.5066.70213.22823.25639.06317.60629.070
80 mm2.111 4.07210.0007.01313.88924.51040.00018.24830.303
90 mm  4.47210.9177.63414.92526.04241.66719.84133.113
100 mm  4.87311.8208.25116.34027.77846.29621.45935.714
110 mm   12.7238.88117.73031.25047.17023.04138.168
120 mm   13.6249.50618.79732.89550.00024.63140.984
130 mm   14.53510.10120.00034.72252.63226.31643.478
140 mm   15.43210.70720.83335.46155.55627.93346.296
150 mm   16.34011.31222.22237.59458.82429.41248.544
160 mm   17.24111.90524.27240.98461.72831.05650.505
170 mm   18.11612.500  64.93532.68053.191
180 mm   19.01113.12326.882 67.56834.24755.556
190 mm   19.92013.736  70.42335.97158.140
200 mm   20.83314.32729.58649.02073.52937.59460.976
220 mm   22.62415.528  79.36540.65065.789
240 mm   24.51016.722  84.74643.86071.429
250 mm   25.38117.301  87.71945.45574.627
260 mm   26.31617.921  90.90947.17076.923
280 mm   28.09019.157  98.03950.50581.967
300 mm   29.94020.325  104.16753.76387.719
320 mm   31.646    56.81892.593
340 mm   33.557    60.24198.039
360 mm   35.211    63.291104.167
380 mm   37.037    66.667108.696
400 mm   39.063    69.444113.636

Carpenter 20 Fasteners Torque Chart

Torque Specifications
Bolt Size Inches or # Threads Per Inch Standard Dry Torque in Inch-Pounds
Alloy 20 Alloy 20
#2 56 2.5 2.6
64 3.0 3.2
#3 48 3.9 4.0
56 4.4 4.6
#4 40 5.2 5.5
48 6.6 6.9
#5 40 7.7 8.1
44 9.4 9.8
#6 32 9.6 10.1
40 12.1 12.7
#8 32 19.8 20.7
36 22.0 23.0
#10 24 22.8 23.8
32 31.7 33.1
Bolt Size Inches or # Threads Per Inch Standard Dry Torque in Inch-Pounds
Alloy 20 Alloy 20
1/4 20 75.2 78.8
28 94.0 99.0
5/16 18 132 138
24 142 147
3/8 16 236 247
24 259 271
7/16 14 376 393
20 400 418
1/2 13 517 542
20 541 565
Bolt Size Inches or # Threads Per Inch Standard Dry Torque in Inch-Pounds
Alloy 20 Alloy 20
9/16 12 682 713
18 752 787
5/8 11 1110 1160
18 1244 1301
3/4 10 1530 1582
16 1490 1558
7/8 9 2328 2430
14 2318 2420
1 8 3440 3595
14 3110 3250
Bolt Size Inches or # Threads Per Inch Standard Dry Torque in Foot-Pounds
Alloy 20 Alloy 20
1 1/8 7 413 432
12 390 408
1 1/4 7 523 546
12 480 504
1 1/2 6 888 930
12 703 732
