Manufacturers & Suppliers of Flanges, Pipe Fittings & Tube Fittings

Super Duplex Steel UNS S32750 / S32760 Sheets, Plates & Coils

  • Home
  • Super Duplex Steel Sheets, Plates & Coils

S32750 SDSS Perforated Sheet, Ready Stock Of Super Duplex S32760 Plates, Manufacturer of ASTM A240 SDSS S32750 Coils, Super Duplex Stainless Steel S32760 Chequered Plates, Super Duplex Steel UNS S32750 Sheets Supplier in Mumbai.

Unifit Metal Alloys is a renowned supplier and manufacturer of Super Duplex Steel S32750 / S32760 Sheets, Plates & Coils, which is not hardenable but has strong mechanical characteristics and great corrosion protection at very high temps.

Super Duplex S32750 Sheets does not require preheating because heat treatment after welding is uncommon, and it has 30% of the thermal conductivity of non-alloyed steels. It was initially designed to resist dilute sulfuric acid environments. Slower rates and positive flows will reduce the likelihood of work hardening and glazing. The inclusion of copper gives them corrosion resistance characteristics that are better to traditional chrome nickel stainless steels, particularly in sulfuric, phosphoric, and acetic acids. Its minimal carbon concentration makes it immune to welding sensitization and avoids intergranular corrosion.

Super Duplex Stainless Steel S32750 Shim Sheets, DIN 1.4410 Hot Rolled Plates, ANSI B16.9 Super Duplex Steel S32760 High Quality Plates, S32750 SDSS 90 Sheets, Super Duplex Grade S32760 Embossed Sheets, High Quality S32750 Duplex Steel Half Hard Plates, UNS S32760 Polished Finishes Plates, Duplex 2205 Cold Rolled Sheets Manufacturer In Mumbai, India.

Super Duplex S32760 Plates, with widths ranging from 600 to 800 degrees Celsius, can be likened to a low carbon steel in terms of machinability. It also has good oxidation protection up to 2000 degrees F. They outperform molybdenum enhanced steels in chloride stress corrosion cracking, pitting, and overall corrosion protection due to their highly alloyed chemistry of nickel and molybdenum. This steel is used for building components that must be resistant to scaling up to 1150 degrees Celsius and highly resistant to the effects of sulphurous gases. It is a soaring chromium ferritic and heat resistant steel by means of having good sulfidation, oxidation, and other kinds of hot erosion protection.

Because Super Duplex 2507 Coils contain more chromium, they have superior rust protection when compared to other steels. It is a ferritic, non-heat treatable stainless steel with great resilience to corrosion and oxidation at high temperatures. The high chromium concentration of this non-hardenable and ferritic alloy contributes to its exceptional corrosion protection. This steel has a high resistance to lowering sulphurous fumes and a low resistance to oxidation in air. This steel is a nonhardenable chromium steel with excellent corrosion and oxidation protection at high temperatures and moderate stress circumstances. It is resistant to rust and oxidation, corrosion scaling, sulfidizing atmospheres, scratching, and other factors.

Super Duplex Steel S32750 / S32760 Sheets, Plates & Coils

Get a best quote for SDSS S32750 Quarter Hard Plates, We Keep Bulk Stock of Super Duplex Steel S32760 Sheets, Plate And Coils at our stockyard, contact us to request a quote.

Super Duplex Steel S32750 / S32760 Sheets, Plates & Coils Specifications

Specifications ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911
Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold rolled Plate 0.5-6.4 mm
Hot rolled Plate 3.0–10.0 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness 0.3 mm to 120 mm
International Standard ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) EN 10258/ DIN 59381)
EN 10151
EN 10088
Finish 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

SDSS S32750 / S32760 Sheets, Plates & Coils Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Super Duplex 2507 1.4410 S32750 / S32760

Super Duplex Steel S32750 / S32760 Sheets, Plates & Coils Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
S32750 0.030 max 1.20 max 0.80 max 0.035 max 0.020 max 24.00 – 26.00 3.00 – 5.00 6.00 – 8.00 0.24 – 0.32 58.095 min
S32760 0.05 max 1.00 max 1.00 max 0.030 max 0.010 max 24.00 – 26.00 3.00 – 4.00 6.00 – 8.00 0.20 – 0.30 57.61 min

S32750 / S32760 Super Duplex Steel Sheets, Plates & Coils Mechanical Properties

Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
7.8 0.281 1350 2460

Various Types Of Super Duplex Steel S32750 / S32760 Sheets, Plates & Coils

SDSS S32750 / S32760 Sheets

SDSS S32750 / S32760 Sheets

DIN 1.4410 45 Perforated Sheet Super Duplex 2507 Hot Rolled Sheets UNS S32750 90 Shim Sheet ANSI B16.9 SDSS S32760 HR Sheet
SDSS S32750 / S32760 Plates

SDSS S32750 / S32760 Plates

S32750 Super Duplex Stainless Steel Chequered Plate DIN 1.4410 CR Platesr ANSI B16.9 Super Duplex S32750 Cold Rolled Plate UNS S32760 Hot Rolled Plates

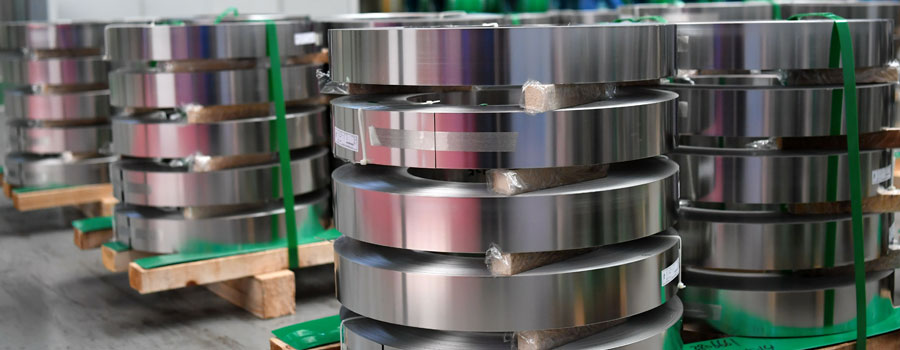

SDSS S32750 / S32760 Coils

SDSS S32750 / S32760 Coils

DIN 1.4410 Slit Coil Super Duplex S32750 Cold Rolled Coil UNS S32760 Strips Coils ANSI B16.9 Super Duplex Grade S32750 Hot Rolled Coils
SDSS S32750 / S32760 Shim Sheets

SDSS S32750 / S32760 Shim Sheets

S32750 Super Duplex Shim Sheets DIN 1.4410 Shim Sheets ANSI B16.9 S32750 SDSS Shim Sheets UNS S32760 Shim Sheets
SDSS S32750 / S32760 Perforated Sheet

SDSS S32750 / S32760 Perforated Sheet

DIN 1.4410 Perforated Sheet Super Duplex Grade S32750 Perforated Sheet UNS S32760 Perforated Sheet ANSI B16.9 Super Duplex S32750 Perforated Sheet
SDSS S32750 / S32760 Chequered Plates

SDSS S32750 / S32760 Chequered Plates

DIN 1.4410 Chequered Plates Super Duper 2507 Chequered Plates UNS S32750 Chequered Plates ANSI B16.9 SDSS S32760 Chequered Plates
SDSS S32750 / S32760 Strip

SDSS S32750 / S32760 Strip

High Quality S32760 Duplex Steel Strip DIN 1.4410 Strip ANSI B16.9 Super Duplex Grade S32760 Soft Strip UNS S32750 Soft Strip
SDSS S32750 / S32760 Foils

SDSS S32750 / S32760 Foils

DIN 1.4410 Foils Super Duplex Steel S32750 Foils UNS S32760 Foils ANSI B16.9 S32750 Super Duplex Steel Foils

Super Duplex Steel S32750 / S32760 Sheets, Plates & Coils Finishes

Surface Finish Definition Application
2B Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. Medical equipment, Food industry, Construction material, Kitchen utensils.
BA Those processed with bright heat treatment after cold rolling. Kitchen utensils, Electric equipment, Building construction.
NO.3 Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. Kitchen utensils, Building construction.
NO.4 Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. Kitchen utensils, Building construction, Medical equipment.
HL Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. Building Construction.
NO.1 The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. Chemical tank, pipe

Super Duplex Steel S32750 / S32760 Sheets, Plates & Coils Dimensions

Surface finish Gauge (in) Width (in)
2B – Cold rolled, heat treated, pickled, skin passed 10–24 max. 72*
2D – Cold rolled, heat treated, pickled 12–24 max. 60
BA Mexinox only 18–28 max. 48
Polished (not brushed) 11–24 max. 60
Temper rolled Mexinox only 13–29 max. 48

S32750 / S32760 Super Duplex Steel Sheets, Plates & Coils Thickness Chart

Thickness Thickness Size Range Surface Area per Unit weight Approx Weight per Sheet
inches mm lbs/ft² kg/m² lbs kg
0.015 0.381 36 x 96 0.630 3.07566 15.12 6.84936
0.015 0.381 36 x 120 0.630 3.07566 18.90 8.5617
0.0178 0.45212 36 x 96 0.756 3.690792 18.15 8.22195
0.0178 0.45212 36 x 120 0.756 3.690792 22.68 10.27404
0.0178 0.45212 48 x 96 0.756 3.690792 24.19 10.95807
0.0178 0.45212 48 x 120 0.756 3.690792 30.24 13.69872
0.0235 0.5969 30 x 96 1.008 4.921056 20.16 9.13248
0.0235 0.5969 30 x 120 1.008 4.921056 25.20 11.4156
0.0235 0.5969 36 x 96 1.008 4.921056 24.19 10.95807
0.0235 0.5969 36 x 120 1.008 4.921056 30.24 13.69872
0.0235 0.5969 36 x 144 1.008 4.921056 36.29 16.43937
0.0235 0.5969 48 x 96 1.008 4.921056 32.26 14.61378
0.0235 0.5969 48 x 120 1.008 4.921056 40.32 18.26496
0.0235 0.5969 48 x 144 1.008 4.921056 48.39 21.92067
0.0291 0.73914 30 x 96 1.260 6.15132 25.20 11.4156
0.0291 0.73914 30 x 120 1.260 6.15132 31.50 14.2695
0.0291 0.73914 36 x 96 1.260 6.15132 30.24 13.69872
0.0291 0.73914 36 x 120 1.260 6.15132 37.80 17.1234
0.0291 0.73914 36 x 144 1.260 6.15132 45.37 20.55261
0.0291 0.73914 48 x 96 1.260 6.15132 40.32 18.26496
0.0291 0.73914 48 x 120 1.260 6.15132 50.41 22.83573
0.0291 0.73914 48 x 144 1.260 6.15132 60.49 27.40197
0.0355 0.9017 30 x 96 1.512 7.381584 30.24 13.69872
0.0355 0.9017 30 x 120 1.512 7.381584 37.80 17.1234
0.0355 0.9017 36 x 96 1.512 7.381584 36.29 16.43937

SDSS S32750 / S32760 Sheets, Plates & Coils Weight Chart

Plate Thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
3 23.55 28.3 35.3 42.4 56.5
4 31.4 37.7 47.1 56.5 75.4
5 39.25 47.1 58.9 70.7 94.2
6 47.1 56.5 70.7 84.8 113
8 62.8 75.4 94.2 113 150.7
10 78.5 94 118 141 188
12 94.2 113 141 170 226
16 125.6 151 188 226 301
20 157 188 236 283 377
22 172.7 207 259 311 415
25 196.25 236 294 353 471
28 219.8 264 330 396 528
32 251.2 301 377 452 603
36 282.6 339 424 509 678
40 314 377 471 565 754
45 353.25 424 530 636 848
50 392.5 471 589 707 942
55 431.75 518 648 777 1036
60 471 565 707 848 1130
65 510 612 765 918 1224
70 549.5 659 824 989 1319
75 588.75 707 883 1060 1413
80 628 754 942 1130 1507
90 706.5 848 1060 1272 1696
100 785 942 1178 1413 1884
